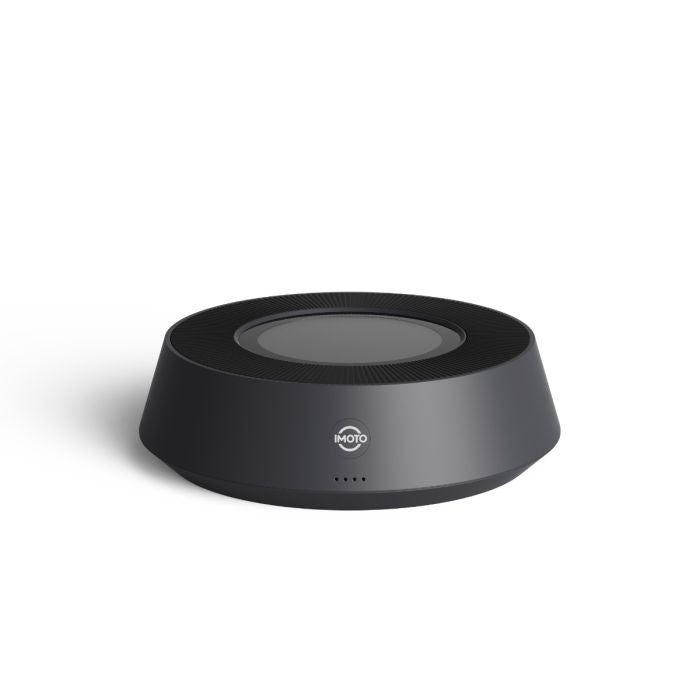

IMOTO G1 LED Base
Highlights
- High-capacity 10,000 mAh rechargeable battery
- Supports multiple output options including DC, Type-C, and USB-A

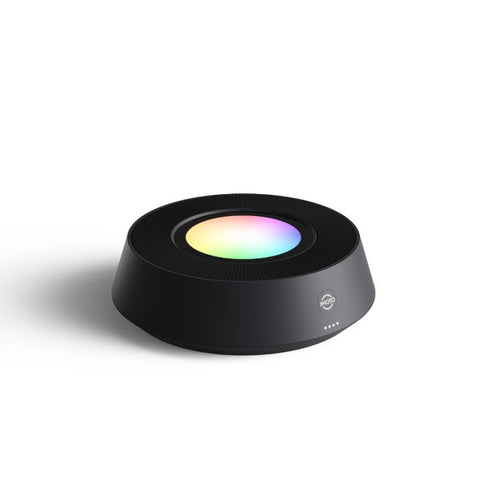

- Integrated LED ring with battery indicators for real-time status feedback
- Serves as both a base power supply and a portable power bank
- Compact and durable PC + ABS construction
Specifications
| Material | PC + ABS |
|---|---|
| Estimated Dimensions | 66 × 229.79 × 229.79 mm |
| Battery Capacity | 10,000 mAh |
| Output Voltage | 14.8 V |
User Interface
- Charging Port: DC female connector, Type-C
- Power Bank Output Port: DC male connector, Type-C, USB A
- Button: 1 × Power Button
- Indicators: 4 × Battery Indicators>
Operation
- Power On/Off: Press and hold the power button for 1.5 seconds.
- Lighting Mode: Press the power button once to cycle through lighting modes. If you prefer to turn off the lights, simply double-press the Power button quickly to switch them off.
- Battery Level (Charging): Indicators light up sequentially as the battery charges; all four illuminate when fully charged.
- Battery Level (Discharging / Power Bank): Indicators show remaining battery capacity; first indicator flashes slowly when low and rapidly before shutdown.
Safety Features
- Short-Circuit Protection: Output shuts off if a short occurs; purple LED ring flashes 5 times and battery indicators illuminate for 18 seconds.
-
Under-Voltage Protection:
- First battery indicator flashes slowly – device and power bank still operational.
- First indicator flashes rapidly – device output off, power bank still operational.
- All functions disabled – LED ring and output turn off after 5 seconds, first indicator flashes rapidly for 18 seconds.
- Charging Protection: If input voltage is too high/low, charging is disabled and battery indicators flash for 18 seconds.
-
Over-Current Protection:
- During charging – charging stops and battery indicators flash for 18 seconds.
- During discharging (power bank mode) – purple LED ring flashes 5 times.
